• Features:

  • Highly Expandable System:
    Up to 3 additional monitors and one additional door station can be connected to the main monitor.
  • 7-inch Screen:
    The main monitor and extension monitor have 7-inch wide (800×480 pixels) screen. That offers easy viewing of wide, vertical and horizontal views.
  • PBX connectivity:
    It can connect to PBX. Only Panasonic PBX is compatible.
  • Voice Change Function:
    This function makes woman’s voice (higher keys) sounds like a man’s (lower keys).
  • Electric Lock Release Support:
    The electric locks release support is available. It can control 2 electric locks individually.
  • Picture Recording Function:
    Eight consecutive still images of visitors are automatically recorded even you are not at home. Up to 50 times, 400 images in total. This ensure you will see every person visiting your home.
  • Night Vision with LED lights (illumination lamp):
    Door station is equipped with LED lights (illumination lamp). It enables the color and clear display of visitors at a distance of about 50 cm at night.
  • Intercom Calls:

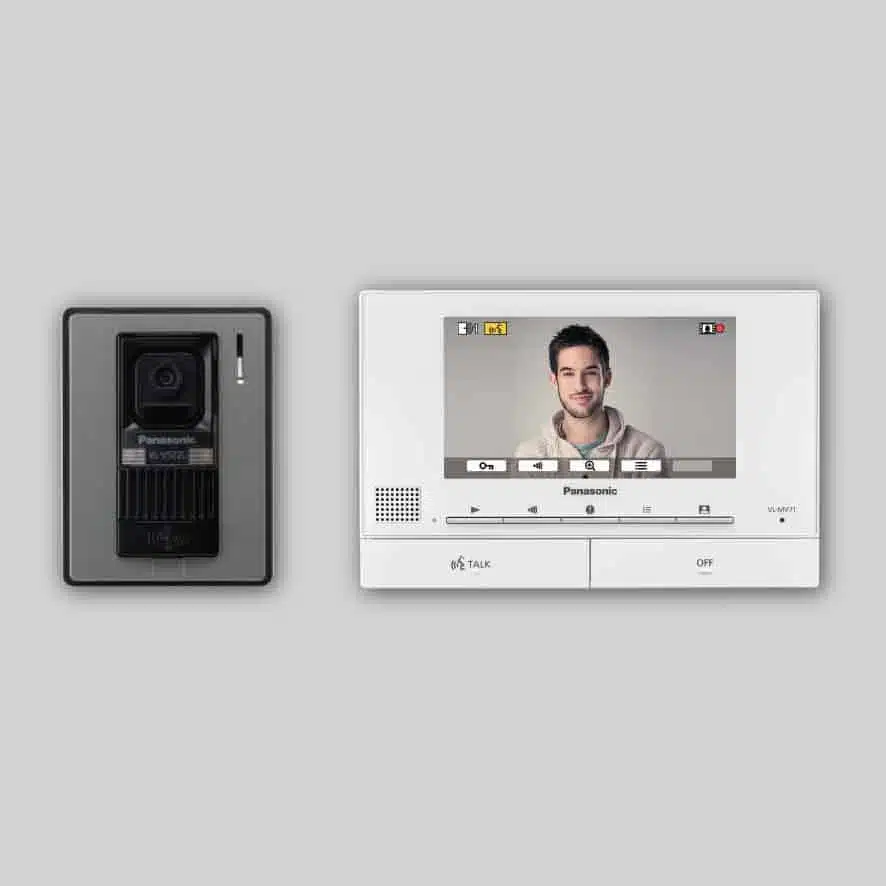

    VL-SV71BX can make intercom Calls between the main monitor and extension monitor).
  • View Angle:
    Horizontal approx. 87, Vertical approx. 66.
  • Wires:
    0.5 to 1 mm thick wire for connection for door station to main monitor and main monitor to extension monitors. it depends on the distance between devices.
    0.5 to 1.2mm for electric lock depends on type of the locks and distance from main monitor.
  • Wiring: Just 2 non-polar wires for connection between door station to main monitor and 2 non-polar wires to connect main monitor with extension monitors.

1.  Pls note: this intercom set use RVV cable or network cale to connect outdoor camera and indoor monitor.

Monitor screen resolution : 800*RGB*480 .

There has no any wifi connection and app. pls pay attantion!

if use 4wires RVV cable wire , 0.3-0.5 square millimetre , among indoor unit and outdoor unit , Max wire distance can be 200meters !

Standard kit is 1pcs outdoor camera and 1pcs 7″ indoor monitor , we call it 1to1 , if you need 1to2 , 1to3 etc. pls contact our sale manager . Thanks !

Support control electric door lock open.

Features:

***7inches digital high resolution lcd screeen.

***Hands free intercom

***Electric unlocking function.

***Monitor the outside view.

***Indoor monitors intercom.

***Anti interruption.

***Auto turn off.

***Slim body.

***HD infrafed lights

***PAL/NTSC(optional)

Outdoor unit Specifications:

*Infrared lamp lighting distance: 4meters

*Gain control: auto

*Resolution:700TVL/100W

*Image transmission distance: 200meters

*Visual angle: 90degrees/120degrees wide angle

*Power: DC 15V

*Camera: high definition and colorful CMOS/CCD(option)

*Outdoor infrared night vision function: 10LUX infrared

*Operating Temperature: -25~60

*Outdoor unit installation method:embedded or wall-mounted type
